Plunger Position Measurement

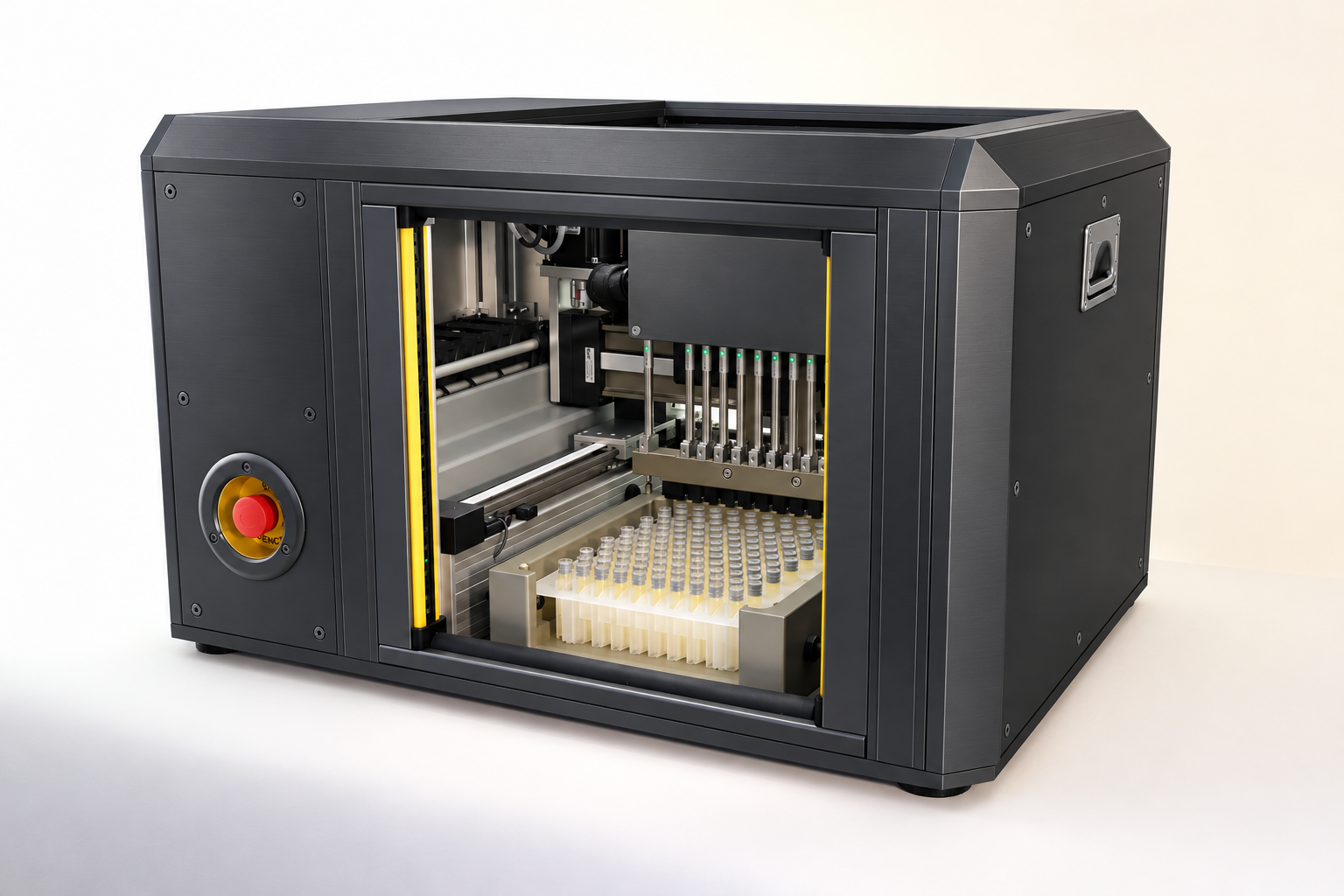

Equipment for automated measurement of plungers. Compatible with both Cartridges and PFS.

Technology:

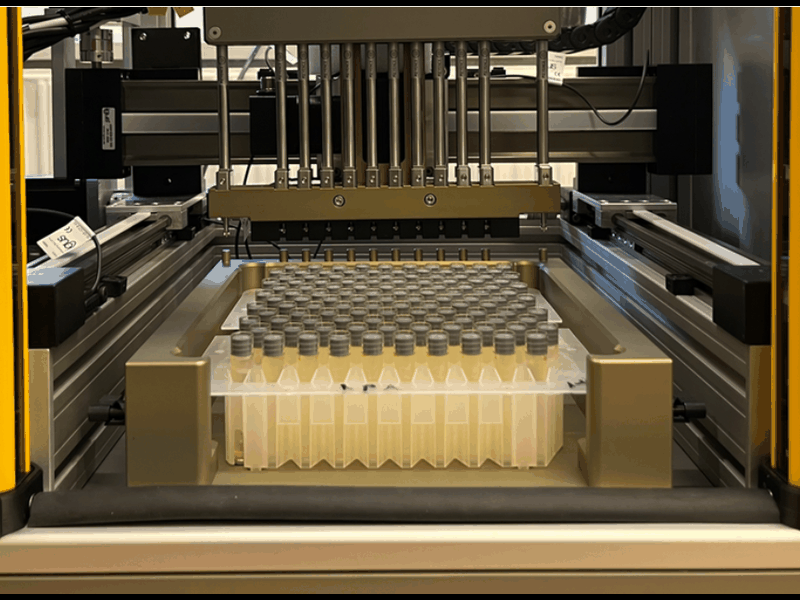

The equipments uses a robust and cost-effective off-the-shelf XYZ gantry system fitted with 12x accurate and repeatable industrial measurement probes.

This combined with a mechanical design focusing on tolerance chains and usability results in a very accurate yet simple and robust setup.

Sensor and system accuracy

The stylus sensor has a low force (0,2N) and an internal accuracy of ±0,002mm (±2µm) with a resolution of 0,5µm

Mounted in a 12x array, where first and last sensor ensure reference measurement for every sampling ensuring high accuracy.

System accuracy (plunger height meausrement) is specified to: 0,05 mm.

Data acquisition and control is handled in TPU’s software. Measurement output files are standard. Optionally the system can interface (send data to) the filling line or other equipment.

CE Marked

Suitable for: Exploratory, DV, Clinic, Production

IQ / OQ / PQ and Validation support available on request.
