Plunger insertion equipment

Semiautomatic plunger insertion for R&D, clincal trials, small batch testing, stabilty testing, drug testing etc. Based on the sleeve inseriton method.

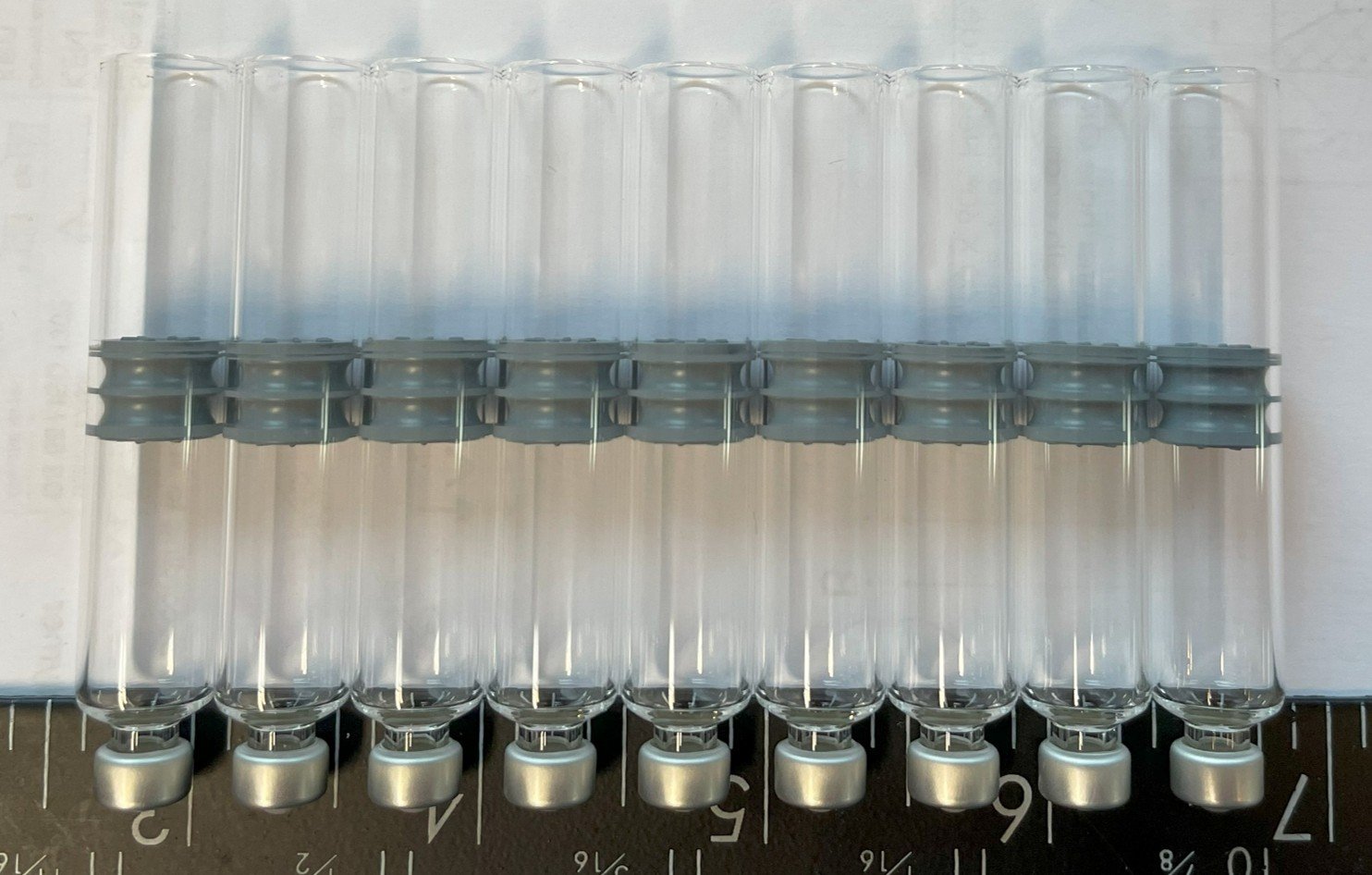

Provides high accuracy and less strain on lab personal. Fast and flexible for insertion of plungers into cartridges and syringes.

The system is air driven. The plunger height is fully adjustable.

CE marked

Suitable for: Exploratory, DV, Clinic.

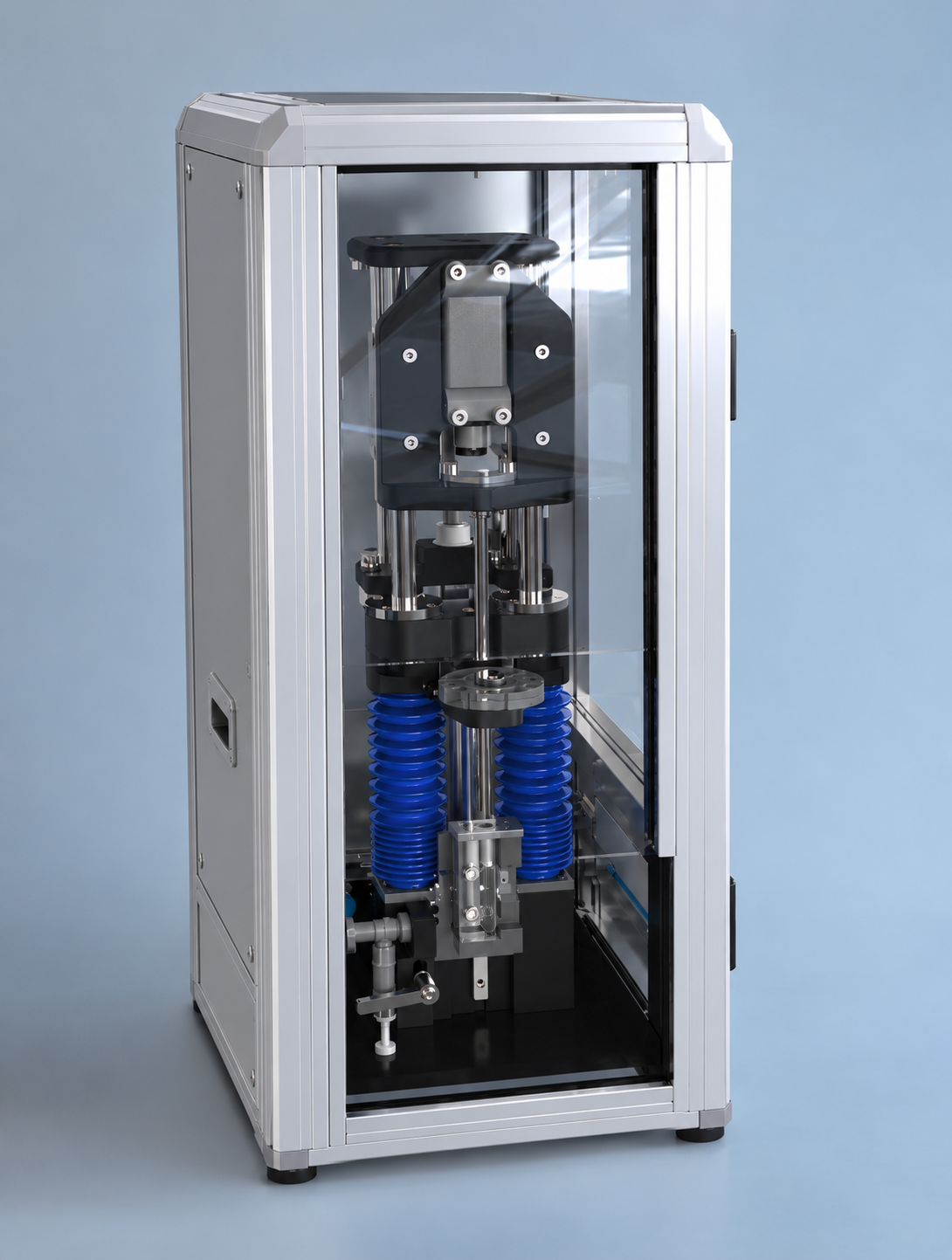

The equipment consists of a mechanical linear motion system. The mechanism guides and positions a pushrod and insertion sleeve relative to a stationary syringe/cartridge. The positions can be adjusted with sub millimeter precision. The pushrod and insertion sleeve that ensures the precise position and air evacuation of the plunger and container are based on industrial proven concepts, ensuring consistent and precise plunger placement.

The motion and timing are defined purely by mechanical and pneumatic components, which eliminates the need for an electrical control system. This simplifies the CE approval and provides a cost-effective solution.

IQ / OQ / PQ and Validation support available on request.
